Long radius elbow 45°
LB45X
LB45 LB45S LB45SS LB45H

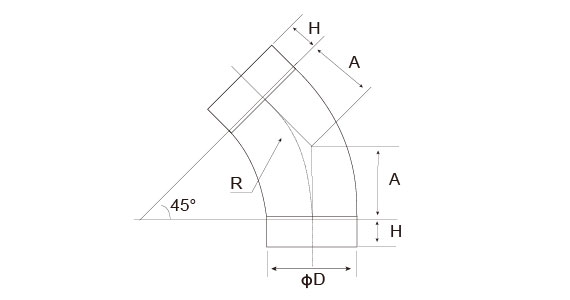

| Size | ΦD(mm) | A(mm) | H(mm) |
| 80 | 78.8 | 120 | 40 |
| 100 | 98.8 | 150 | 40 |
| 125 | 123.8 | 187.5 | 40 |
| 150 | 148.7 | 225 | 40 |
| 160 | 158.7 | 240 | 40 |
| 180 | 178.6 | 270 | 40 |
| 200 | 198.6 | 300 | 40 |
| 250 | 248.5 | 375 | 40 |

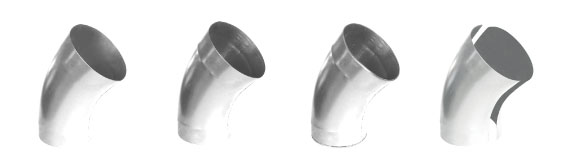

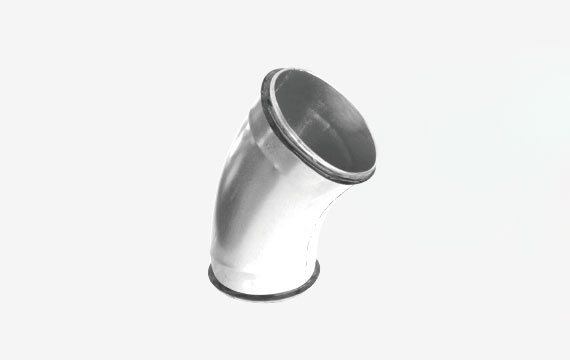

Galvanized steel pressed and seam welded bends 45°, with rubber sealing. Radius R = 1.5 x D. The airthightness class is also determined by the mounting on the construction site. Other available products Pressed bends 45° without rubber sealing type LB45 LB45S LB45SS LB45H |
