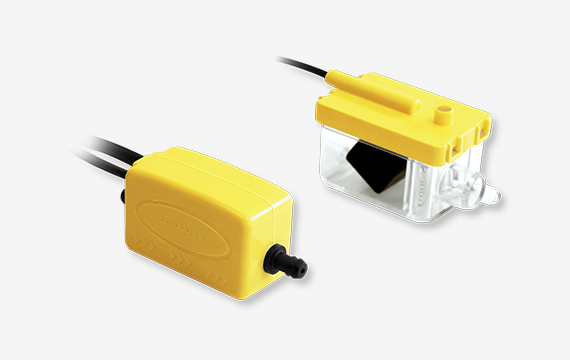

TECHNICAL DATA of the Mini Split Condensate Pump
- Power supply: 115V 50Hz or 230V 50/60Hz
- Max. flow: 15L/h (4GPH) @ 0 head
- Sound level: 21 dB(A) @ 1M (3.3ft)
- Max. discharge head: 12M (39.4ft)
- Емкость резервуара: 40 мл
- Max. unit output: 16kw / 54,600 Btu/h
- Max. water temperature: 40°C
- Разгрузочная трубка: 6 ммID
- Class: Ⅱappliance 回
- Номинал: Непрерывный
- IP-защита: IPX5
- Thermal protection: Yes
- Fully potted: Yes
- L×W×H: 82.4mm x 28mm x 37mm
Included Accessories
- Assembled EASY BOX
- 6mm i/d vinyl tube
- Assembled Inline reservoir
- Inlet tube
- Power cable
- Self adhesive velcro strips x 2
- 2 x 100mm x 3mm cable ties
(Pair this Refcenter Mini Condensate Pump with our other HVAC accessories for a complete system solution)
