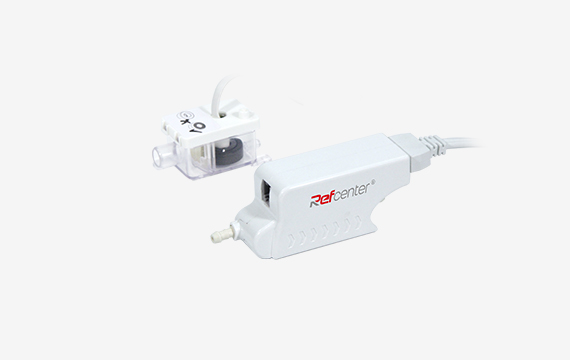

The Technical Data Of Mini Condensate Drain Pump
- Электропитание: 100-240 В переменного тока 50/60 Гц
- Max. flow: 20L/h (5.3GPH) @ 0 head
- Sound level: 18 dB(A) @1M (3.3ft)
- Max. discharge head: 20M (65.6ft)
- Max. unit output: 28kw / 95,550 Btu/h
- Защитный выключатель: 3A Нормально замкнутый
- Max. water temperature: 70°C
- Разгрузочная трубка: 6 ммID
- Class: Ⅱappliance 回
- Rated: Continuous
- L×W×H: 125mm x 38mm x 50mm
Accessories included in Mini Condensate Drain Pump
- Assembled MPC PUMP
- 6mm i/d vinyl tube
- Assembled Inline reservoir
- 1.5m length of 6mm i/d vinyl tube
- Inlet tube
- 6 pin socket lead assembly
- Self adhesive velcro strips x 2
- 4 x 200mm x 4mm cable ties
- Check valve
- Anti-siphon valve
(Pair this Refcenter Mini Condensate Pump with our other HVAC accessories for a complete system solution)
