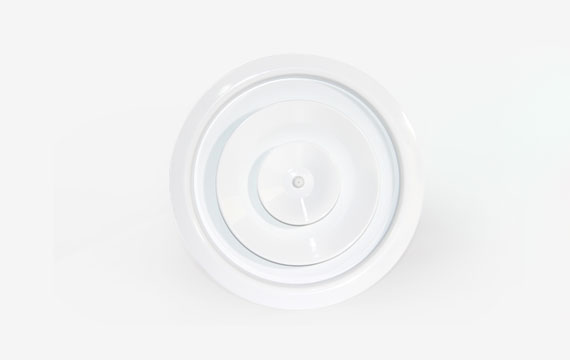

HVAC Aluminium Circular Round Ceiling Air Diffuser
Short description:
HVAC Aluminium Circular Round Ceiling Air Diffuser
Long Descriptions
CD-RW

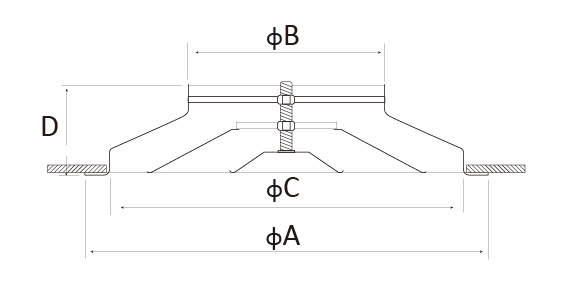

| Type | ΦA(mm) | ΦB(mm) | ΦC(mm) | D(mm) |
| CD-RW160 | 365 | 157 | 295 | 88 |
| CD-RW200 | 400 | 198 | 330 | 92 |
| CD-RW250 | 515 | 250 | 445 | 120 |
|
– Application: For air supply and exhaust of the hot or cold air
– Material: All aluminium construction
– Colour: Powder-coated or anodized finish,standard colour RAL9010, 9016
– Construction: Assembled with integral butterfly volume damper made of plastic.
The rotatable inner core offers free access to the integral butterfly plastic volume damper
|
