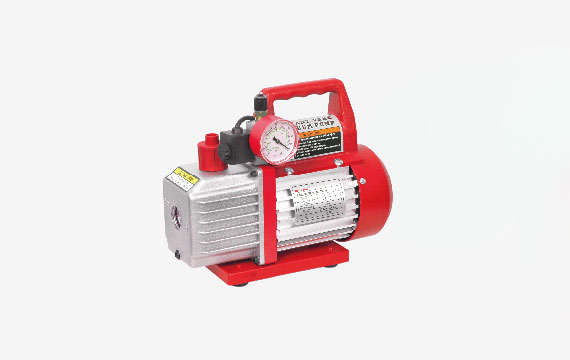

Vacuum pump
HVP
| Model | HVP115 （HVP-1） | HVP125 （HVP-1.5） | HVP135 （HVP-2） | HVP145 （HVP-2.5） | HVP160 （HVP-3） | HVP180 （HVP-4） | HVP1100 （HVP-5） | |
| Flow Rate | 50HZ | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM |
| 42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | ||
| 60HZ | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | |
| 50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | ||
| Ultimate Vacuum | 5pa | 5pa | 5pa | 5pa | 5pa | 5pa | 5pa | |
| 150microns | 150microns | 150microns | 150microns | 150microns | 150microns | 150microns | ||
| Power | 1/4HP | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | |
| Inlet Port | 1/4”Flare | 1/4”Flare | 1/4”Flare | 1/4”Flare | 1/4”&3/8”Flare | 1/4”&3/8”Flare | 1/4”&3/8”Flare | |
| Oil Capacity | 320ml | 300ml | 350ml | 350ml | 450ml | 700ml | 800ml | |
| Dimensions | 270x119x216 | 278x119x216 | 278x119x216 | 278x119x216 | 320x134x232 | 370x140x250 | 290x140x250 | |
| Weight | 5.3kg | 5.5kg | 6.5kg | 6.8kg | 10kg | 5.5kg | 14.5kg | |
| Model | HVP215 （2HVP-0.5） | HVP225 （2HVP-1） | HVP235 （2HVP-1.5） | HVP245 （2HVP-2） | HVP260 （2HVP-3） | HVP280 （2HVP-4） | HVP2100 （2HVP-5） | |
| Flow Rate | 50HZ | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM |
| 42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | ||
| 60HZ | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | |
| 50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | ||
| Ultimate Vacuum | 3×10-1pa | 3×10-1pa | 3×10-1pa | 3×10-1pa | 3×10-1pa | 3×10-1pa | 3×10-1pa | |
| 25microns | 25microns | 25microns | 25microns | 150microns | 150microns | 25microns | ||
| Power | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | 1HP | |
| Inlet Port | 1/4”Flare | 1/4”Flare | 1/4”&3/8”Flare | 1/4”&3/8”Flare | 1/4”&3/8”Flare | 1/4”&3/8”Flare | 1/4”&3/8”Flare | |
| Oil Capacity | 180ml | 280ml | 360ml | 350ml | 700ml | 600ml | 700m | |
| Dimensions | 270x119x216 | 278x119x216 | 320x134x232 | 278x119x216 | 370x140x250 | 370x140x250 | 390x140x250 | |
| Weight | 6kg | 7kg | 11kg | 11.8kg | 15kg | 15.5kg | 16kg | |
The pump has reasonable design, safe and reliable, high pumping speed, ultimate vacuum height, low noise, no fuel injection, no oil leakage, convenient maintenance and beautiful appearance. New series for R32 |
